ThermaSol STC & HydroVive Wellness Shower Package
SignaTouch Control, HydroVive Rainhead, Digital Shower Valve
SKU: WH14SPSR-AB | Model: STC & HYDROVIVE WELLNESS SHOWER PACKAGE

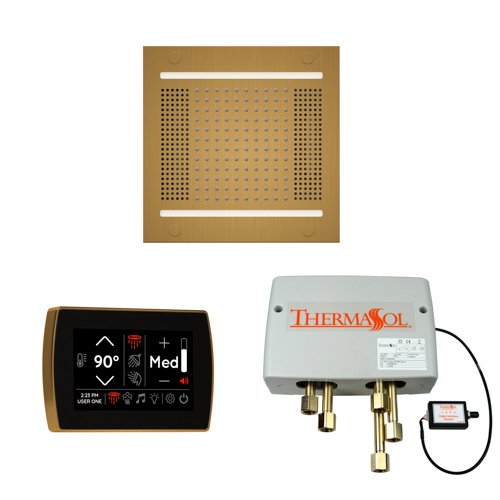

Intelligent design creates immersive bathing with the Wellness Shower Package, complete with SignaTouch touchscreen control, HydroVive multi-sensory rainhead, and Digital Shower Valve.
Description:
Redefine your daily shower routine with the with the Wellness Shower Package from ThermaSol.
Operate the SignaTouch’s full color capacitive touchscreen display to navigate a full array of system functions. Relax and rejuvenate under the cascading rainfall of the HydroVive and connect external fixtures to the Digital Shower Valve for precise temperature control and customizable pressure settings. Optimize your desired aesthetic by adjusting the full-color spectrum LED mood lighting and perfect it by listening to premium hi-fi audio with adjustable volume, treble, mid, and bass. Set custom user profiles and play music through Bluetooth for seamless streaming.
Choose from different finishes, control installation types and rainhead sizes for your ideal Wellness Shower Package.
Features:
SignaTouch
- Easy to read, full color capacitive touchscreen display.
- Straightforward single touch navigation between water, steam, temperature, lighting and sound control.
- Operates shower fixture, steam generator, and multi-sensory rainhead functions.
- Operates SmartSteam™, FastStart™ and PowerFlush™ technology.
- Fully water and steam proof for easy installation in any environment.
- Built-in Bluetooth® to operate audio functions through a smart device.
- Customizable preset preferences for two user profiles.
- Can be installed vertically or horizontally for a personalized look.
- Choose between different styles and multiple trim finishes.
- Surface Mount dimensions: 5.8″W (14.7 cm) x 0.7″D (1.8 cm) x 4″H (10.2 cm)
- Recessed dimensions: 5.6″W (14.2 cm) x 0.65″D (1.7 cm) x 3.5″H (8.9 cm)
- Designed, engineered and built in the U.S.A.
- 2-year warranty.
HydroVive
- Delivers a gentle, full-coverage rainfall sensation.
- Full-color changing luminous LED lighting for mood-enhancing ambiance.
- True white light for enhanced clarity and ambiance.
- Preset chromatherapy chakras for a harmonious blend of color.
- User-programmable “any color” for visual personalization.
- Premium hi-fi audio output with adjustable volume, treble, mid, and bass.
- Built-in Bluetooth® compatibility for seamless audio streaming.
- Choose between different styles and multiple finishes.
- 14″ dimensions: 14″W (35.6 cm) x 8″D (20.3 cm) x 14″H (35.6 cm)
- 18″ dimensions: 18″W (45.7 cm) x 8″D (20.3 cm) x 18″H (45.7 cm)
- Designed, engineered, and built in the USA.
- 2-year warranty.
- CEC approved.
Digital Shower Valve
- Consistent water volume with precise temperature control.
- Customizable low, medium or high-water pressure settings for a personalized experience.
- Industry-leading ceramic disc Flühs valves to ensure reliability and durability.
- Operates 2 industrial-grade stepper motors with 400 positions to eliminate noise.
- Built-in anti-scald protection for comfort and safety.
- May be installed up to 30 ft. away from shower.
- Output valves for 3 different water fixtures.
- Backup battery for long lasting use.
- Dimensions: 11″W (27.9 cm) x 3″D (7.6 cm) x 7″H (17.8 cm)
- Designed, engineered and built in the U.S.A.
- 1-year warranty.
- IAPMO approved.
Includes:
SignaTouch
- Control
- Silicone
- Mud Ring
- Static Cling Warning Label
- Installation Instructions
- 2-Year Warranty
HydroVive
- Fixture
- Hardware
- Silicone
- Wood Screw
- 25 ft. Yellow M12 Cable
- 25 ft. Audio Cable
- Installation Instructions
- 2-Year Warranty
Digital Shower Valve
- Digital Shower Valve
- Screw Set
- Connection Nipple Set
- 50 ft. CAN Bus Cable
- Digital Interface
- Backup Battery
- Installation Instructions
- 1-Year Warranty
Specifications:
|
Model |
SIGNATOUCH |
|
Construction (Surface Mount) |
6061 Billet Aluminum |
|
Construction (Recessed) |
Black Acrylic |
|
Display |
5″ Capacitive Touchscreen |
|
Display Resolution |
480 x 800 |
|
Display Full Color |
16.7M |
|
Interface |
Single Touch |
|
Width (Surface Mount) |
5.8″ (14.7 cm) |
|
Depth (Surface Mount) |
0.7″ (1.8 cm) |
|
Height (Surface Mount) |
4″ (10.2 cm) |
|
Width (Recessed) |
5.6″ (14.2 cm) |
|
Depth (Recessed) |
0.65″ (1.7 cm) |
|
Height (Recessed) |
3.5″ (8.9 cm) |
|
Weight |
2 lbs (0.9 kg) |
|
Model |
HYDROVIVE |
|
Construction Material |
Machined Brass |
|
Lighting (14″) |
84 Full-Color Luminous LED |
|
Lighting (18″) |
200 Full-Color Luminous LED |
|
Water Supply |
3/8” (1.8 GPM at 40-80 PSI) |
|
Water Jets (14″) |
120 |
|
Water Jets (18″) |
300 |
|
Power (14″) |
PDM Power Supply |
|
Power (18″) |
24V DC, 30 Watt Power Supply |
|
Width (14″) |
14″ (35.6 cm) |
|
Depth (14″) |
8″ (20.3 cm) |
|
Height (14″) |
14″ (35.6 cm) |
|
Weight (14″) |
22 lbs (10 kg) |
|
Width (18″) |
18″ (45.7 cm) |
|
Depth (18″) |
8″ (20.3 cm) |
|
Height (18″) |
18″ (45.7 cm) |
|
Weight (18″) |
37 lbs (16.8 kg) |
|
Model |
DIGITAL SHOWER VALVE |
|
Two Inputs |
1/2″ FNPT |
|
Three Outputs |
1/2″ FNPT |
|
Power Supply Input |
110 VAC, 0.5 AMP |
|
Power Supply Output |
15 VDC, 3 AMPS Required |
|
Water Output |
9.25 GPM at 45 PSI |
|
Width |
11″ (27.9 cm) |
|
Depth |
3″ (7.6 cm) |
|
Height |
7″ (17.8 cm) |
|
Weight |
16 lbs (7.3 kg) |
Technical:
ThermaSol-Wellness-Shower-Package-WHSPSR-Spec-Sheet
ThermaSol-Wellness-Shower-Package-WH14SPSS-Spec-Sheet
ThermaSol-Wellness-Shower-Package-WH14SPSR-Spec-Sheet
ThermaSol-Wellness-Shower-Package-WHSPSS-IOM
ThermaSol-Wellness-Shower-Package-WHSPSR-IOM
ThermaSol-Wellness-Shower-Package-WH14SPSS-IOM ThermaSol-Wellness-Shower-Package-WH14SPSR-IOM
Required Components
The following items are required for the successful operation and installation of this product.
Steam Shower Generators
ThermaSol PRO III
SKU: PROIII-84
Engineered to blend efficient steam with lasting quality, PRO Series III generators from ThermaSol provide innovative technology that sets the bar for a soothing steam shower experience.
- PROIII-84 – 6kW rooms up to 84 cu. ft.
- PROIII-140 – 8kW rooms up to 140 cu. ft.
- PROIII-240 – 10kW rooms up to 240 cu. ft.
- PROIII-395 – 11kW rooms up to 395 cu. ft.
- PROIII-575 – 15kW rooms up to 575 cu. ft.
- PROIII-750 – 20kW rooms up to 750 cu. ft.
- PROIII-1200 – 24kW rooms up to 1200 cu. ft.
