Description

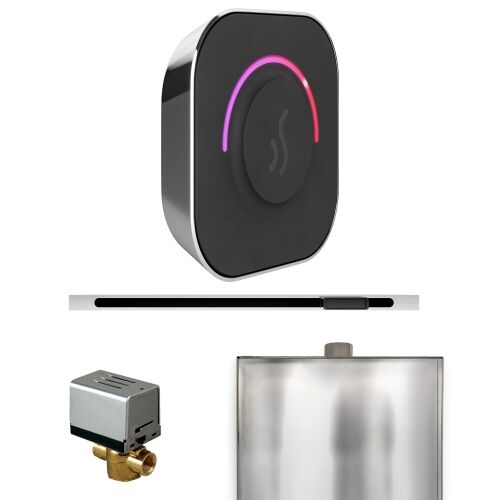

The Mr.Steam ButlerTouch Linear Control Package brings pure fun and function to your steam shower experience with a touch or swipe of a finger. This collection comes complete with a TempoTouch Control, Linear SteamHead, AutoFlush System, and Condensation Pan.
Features
TempoTouch Control
- Capacitive touch control
- Simply press the button in the center to turn it on/off
- Pulses at start up and touch drive offers a tactile user experience
- Color gradient runs from blueish purple to radiant red when the system is on
- Slide finger along the arc or touch along the arc to adjust the temperature
- LED array lights up and a white dot illuminates at desired set temperature
- Temperature ranges from 80-120°F
- Face is made of rubber
- Dimensions: 3″W (8 cm) x 0.8″D (2 cm) x 3″H (8 cm)
- Limited 2-year warranty
Linear SteamHead
- Slender, horizontal opening disperses steam evenly and smoothly
- Diverter directs steam upwards and reduces the steam emission zone
- Series of patented interior baffles delivers whisper quiet steam
- Has a visible AromaTray for essential oils
- No assembly of moving parts required
- Installs flush to the wall and nearly disappears in the grout line
- Dimensions: 16″W (41 cm) x 4.8″D (12 cm) x 9.3″H (24 cm)
- Limited 2-year warranty
AutoFlush System
- Automatic self-cleaning system that promotes a long and healthy life for steam generators
- Flushes old water and impurities after every steam shower
- Quietly flushes through a 1/2″ electronically-activated valve
- Simple plug and play installation
- Dimensions: 3.3″W (8 cm) x 2.5″D (6 cm) x 4.3″H (11 cm)
- Limited 2-year warranty
Condensation Pan
- Protects against potential water leaks
- Will trap and redirect the water to a predetermined area
- Goes on a solid level surface beneath the steam generator
- Built-in brackets raise the steam generator above the bottom of the pan
- Dimensions: 25″W (64 cm) x 9″D (23 cm) x 1.5″H (4 cm)
- Limited 2-year warranty
Includes
TempoTouch Control
- Control
- 30 ft Control Cable
- Tube of Silicone Sealant
- Installation and Operation Manual
- 2-Year Limited Warranty
Linear SteamHead
- SteamHead
- Faceplate
- Diverter
- AromaTray
- Silicone Sealant
- 2-Year Limited Warranty
AutoFlush System
- AutoFlush Valve with Cord
- 2-Year Limited Warranty
Condensation Pan
- Condensation Pan
- 2-Year Limited Warranty
Specifications
| Model | BUTLERTOUCH LINEAR PKG |
| Model | TEMPOTOUCH |
| Construction Material | Plastic, Metal, Electronics |
| Installation Type | Hardwired |
| Display | LED Array |
| Interface | Capacitive Touch |
| Width | 3" (8 cm) |
| Depth | 0.8" (2 cm) |
| Height | 3" (8 cm) |
| Weight | 5 lbs (2 kg) |
| Model | STEAMHEAD 104480 |
| Construction Material | Brass |
| SteamHead Connection | 3/4" NPT |
| Width | 16" (41 cm) |
| Depth | 4.8" (12 cm) |
| Height | 9.3" (24 cm) |
| Weight | 9.2 lbs (4 kg) |
| Model | AUTOFLUSH MS81500E |
| Construction Material | Aluminum and Brass |
| Drain Valve | 1/2" NPT |
| Width | 3.3" (8 cm) |
| Depth | 2.5" (6 cm) |
| Height | 4.3" (11 cm) |
| Weight | 2.3 lbs (1 kg) |
| Model | CONDENSATION PAN 103867 |
| Construction Material | Stainless Steel |
| Drain Fitting | 3/4" NPT |
| Width | 25" (64 cm) |
| Depth | 9" (23 cm) |
| Height | 1.5" (4 cm) |
| Weight | 3 lbs (1 kg) |
