Description

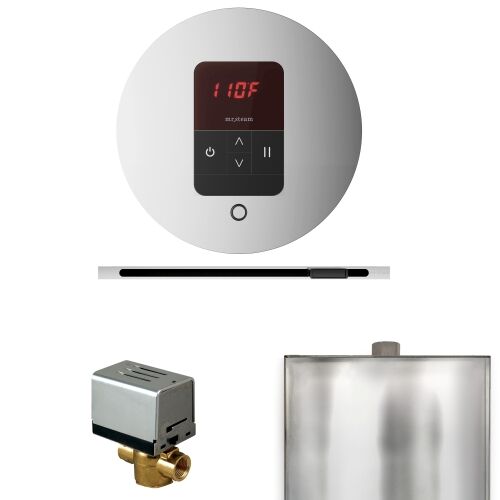

Your steam system can be seamless with the Mr.Steam Basic Butler Linear Control Package. This collection comes complete with an iTempo Control, Linear SteamHead, AutoFlush System, and Condensation Pan. Command more than just steam on the user-friendly interface. It has never been easier to optimize your steam shower experience.
Features
iTempo Control
- Comes with a matching Linear SteamHead
- Works with the SteamLinx Module and Mobile App
- Display lets you program the temperature and get comfortable
- Easily mount and install your control snug to the wall
- Dimensions: 5″Diamater (13 cm) x 0.3″D (1 cm) and 4.5″W (11 cm) x 0.3″D (1 cm) x 5″H (13 cm)
- Limited 2-year warranty
Linear SteamHead
- Slender, horizontal opening disperses steam evenly and smoothly
- Diverter directs steam upwards and reduces the steam emission zone
- Series of patented interior baffles delivers whisper quiet steam
- Has a visible AromaTray for essential oils
- No assembly of moving parts required
- Installs flush to the wall and nearly disappears in the grout line
- Dimensions: 16″W (41 cm) x 4.8″D (12 cm) x 9.3″H (24 cm)
- Limited 2-year warranty
AutoFlush System
- Automatic self-cleaning system that promotes a long and healthy life for steam generators
- Flushes old water and impurities after every steam shower
- Quietly flushes through a 1/2″ electronically-activated valve
- Simple plug and play installation
- Dimensions: 3.3″W (8 cm) x 2.5″D (6 cm) x 4.3″H (11 cm)
- Limited 2-year warranty
Condensation Pan
- Protects against potential water leaks
- Will trap and redirect the water to a predetermined area
- Goes on a solid level surface beneath the steam generator
- Built-in brackets raise the steam generator above the bottom of the pan
- Dimensions: 25″W (64 cm) x 9″D (23 cm) x 1.5″H (4 cm)
- Limited 2-year warranty
Includes
iTempo Control
- Control
- 30 ft Control Cable
- Tube of Silicone Sealant
- Installation and Operation Manual
- 2-Year Limited Warranty
Linear SteamHead
- SteamHead
- Faceplate
- Diverter
- AromaTray
- Silicone Sealant
- 2-Year Limited Warranty
AutoFlush System
- AutoFlush Valve with Cord
- 2-Year Limited Warranty
Condensation Pan
- Condensation Pan
- 2-Year Limited Warranty
Specifications
| Model | BASIC BUTLER LINEAR PKG |
| Model | ITEMPO |
| Construction Material | Plastic, Metal, Electronics |
| Installation Type | Hardwired |
| Display | Digital Characters |
| Interface | Push Buttons |
| Diameter (RD) | 5" (13 cm) |
| Depth (RD) | 0.3" (1 cm) |
| Width (SQ) | 4.5" (11 cm) |
| Depth (SQ) | 0.3" (1 cm) |
| Height (SQ) | 5" (13 cm) |
| Weight | 5 lbs (2 kg) |
| Model | STEAMHEAD 104480 |
| Construction Material | Brass |
| SteamHead Connection | 3/4" NPT |
| Width | 16" (41 cm) |
| Depth | 4.8" (12 cm) |
| Height | 9.3" (24 cm) |
| Weight | 9.2 lbs (4 kg) |
| Model | AUTOFLUSH MS81500E |
| Construction Material | Aluminum and Brass |
| Drain Valve | 1/2" NPT |
| Width | 3.3" (8 cm) |
| Depth | 2.5" (6 cm) |
| Height | 4.3" (11 cm) |
| Weight | 2.3 lbs (1 kg) |
| Model | CONDENSATION PAN 103867 |
| Construction Material | Stainless Steel |
| Drain Fitting | 3/4" NPT |
| Width | 25" (64 cm) |
| Depth | 9" (23 cm) |
| Height | 1.5" (4 cm) |
| Weight | 3 lbs (1 kg) |
