Description
This steam adapter kit enables the DTV+ and Anthem+ systems to control an Invigoration® Series steam generator, bringing steam to your shower space in just 60 seconds at the push of a button. The kit also includes a remote temperature sensor and a steam head with aromatherapy well, allowing you to add aromatic scents to enhance your steam experience. Requires DTV+ and Anthem+ shower components (sold separately).
Not compatible with other manufacturers’ steam generators.
Features
- Allows Kohler Invigoration® Steam Generator to be controlled via the DTV+ and Anthem+ Showering Systems.
- For use with Kohler Invigoration® Steam Generators between 5 and 15 kilowatts.
- Adjustable temperature settings between 90°F and 125°F.
- Aromatherapy reservoir on steam heads.
- Circular steam head design allows steam to be evenly dispensed throughout shower.
- 20-minute safety shutoff.
- Quick-connect RJ-12 cord and connector for simplified installation and service.
- Not compatible with other manufacturers’ steam generators.
- 5 Year Limited Warranty
Includes

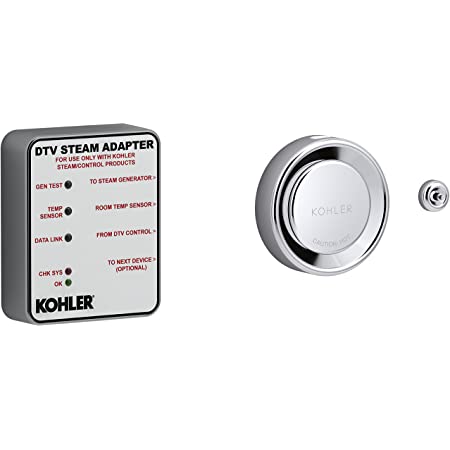

- Steam head
- Temperature sensor
- Adapter
- 10″ Straight Cable
- 16″ Crossover Cable
- 6″ Straight Cable
- DTV Harness
- Dual Connector
- Gasket
- Mounting Arm
- Terminator
- Thermostor Harness
- 5 Year Limited Warranty
Specifications
| Model | K-5548-K1 |
| Mount | Wall |
| Steam Generator Power Range | 5-15 kW |
| Temperature Range | 90°-125°F (32°-52°C) |
| Adapter Dimensions | 3.3"W (8.3 cm) x 0.8"D (1.9 cm) x 4"H (10.2 cm) |
| Steam Head Dimensions | 3" Diameter (7.6 cm) x 0.8" (1.9 cm) |
| Temperature Sensor Dimensions | 0.7" Diameter (1.7 cm) |
