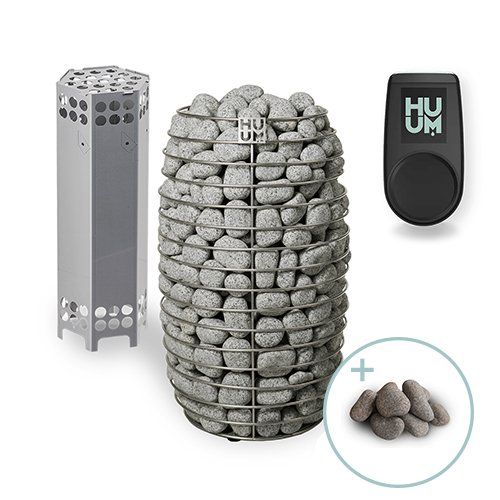

HUUM HIVE Mini 9STU Pkg
HIVE Mini Series 9.0kW Sauna Heater Package
SKU: 534-BDL-HIVEM9STULB | Model: HIVE MINI 9STU PKG
The HUUM HIVE Mini 9STU sauna heater package comes complete with the traditionally designed HIVE Mini 9kW sauna heater, UKU control (Wi-Fi optional), and sauna stones. This package has everything you need to build your dream sauna experience and has been engineered for sauna rooms from 283 to 460 cubic feet (CF).
Description:
The HUUM HIVE Mini 9STU sauna heater package features all the necessities that will give your sauna space a touch of tradition. This all-inclusive package includes the HIVE Mini 9kW sauna heater, UKU control with optional Wi-Fi, and 330 lbs of sauna stones.
Precision-engineered and crafted in Estonia for a true European sauna experience.
Features:

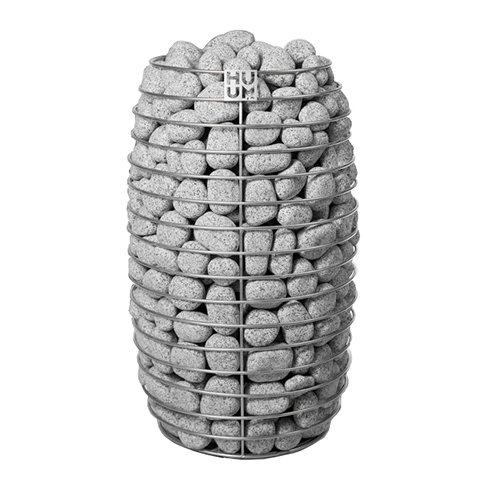

HIVE Mini 9.0kW Sauna Heater
- Elegant design
- 240V/1PH operation
- Works with UKU controls
- 330 pound stone capacity
- Direct contact between stones and heating elements
- More exposed stones create a longer and milder heat
- Stainless steel construction
- Stainless steel, industrial quality heating elements
- Floor model with adjustable legs

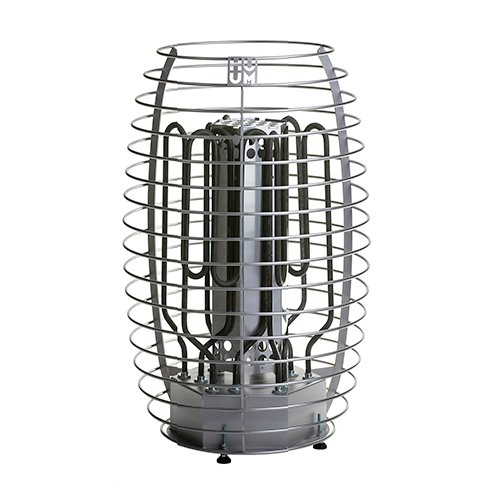

- Air tunnel shortens heat-up time and increases life of heating elements
- SGS listed
- Designed, engineered, and made in Estonia
- Dimensions: 18.1″Diameter (460mm) x 29.5″H (750mm)
- Limited 3-year residential warranty and limited 1-year commercial warranty (excluding elements)

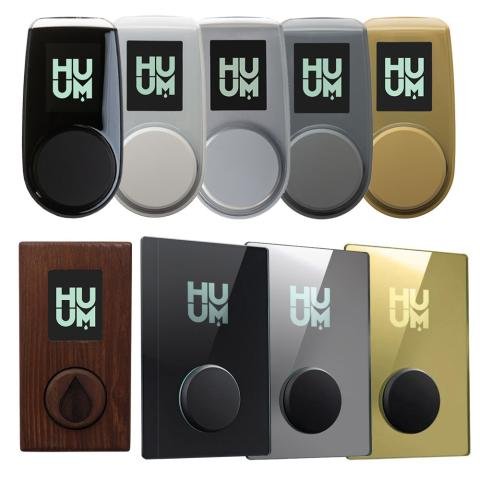

UKU Control
- Sleek black control display panel
- Multiple color options available (additional charges apply)
- Settable on/off, time, temperature, and delay
- Settable temperature range of 104-230°F
- Delayed start up to 48hrs in advance
- Optional built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
- 8 language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
- Inside/outside sauna room installation
- Optional smart heating setting
- Available decorative control display panels
- Displays set temperature and room temperature
- Temperature sensor
- Door sensor to keep the heat inside the room
- Remotely located main control module
- Connects to lights and ventilation
- Overheat protection
- Child safety lock
- Control Console Dimensions: 2.2″W (55mm) x 0.9″D (22mm) x 4.1″H (105mm)
- Main Control Module Dimensions: 3.5″W (90mm) x 2.3″D (58mm) x 5.6″H (142mm)
- Limited 3-year residential warranty and limited 1-year commercial warranty

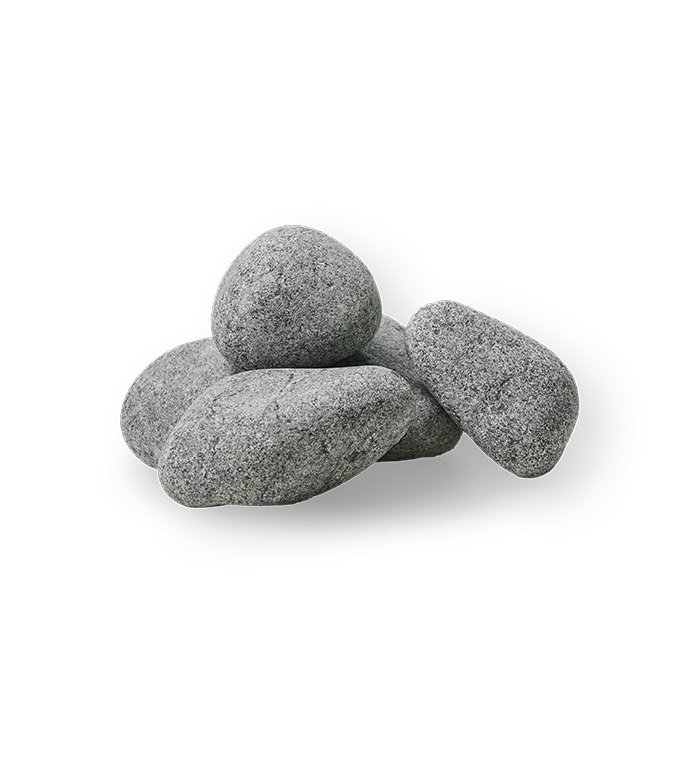

Stones 24
- Olivine diabase sauna stones
- Rounded shape to complement heater design
- Durable with high-heat capacity
- Stones range from 2″ to 4″ (5-10 cm)
Includes:
-
HIVE Mini 10.6kW Sauna Heater
- 10.6kW Sauna Heater
- Adjustable Legs
- Pre-Installed HIVE Air Tunnel
- Installation and Operation manual
- 3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty (Excluding Elements)
UKU Control
- Black Control Console
- Main Control Module
- Temperature Sensor
- Door Sensor
- Control Display Panel Cable
- Temperature Sensor Cable
- Door Sensor Cable
- Installation and Operation Manual
- 3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty
Stones 24
- 330 lbs of 2″ – 4″ (5-10 cm) Round Sauna Stones
Specifications:
|
Model |
HIVE MINI 10.6STU PKG |
|
HIVE Mini 10.6 |
|
|
Kilowatt Rating |
10.6kW |
|
Minimum Cubic Feet |
354 |
|
Maximum Cubic Feet |
566 |
|
Heater Weight |
40.3 lbs |
|
Shipping Weight with Sauna Stones |
370.3 lbs |
|
240V, Single-Phase Amperage |
43.75 |
|
Circuit Breaker |
See Installation and Operation Manual |
|
Wire Size AWG |
6 |
|
Diameter |
18.1″ (460mm) |
|
Height |
29.5″ (750mm) |
|
UKU Control |
|
|
Minimum Temperature Setting |
104°F |
|
Maximum Temperature Setting |
230°F |
|
Shipping Weight |
20 lbs |
|
Console Dimensions |
|
|
Width |
2.2″ (55mm) |
|
Depth |
0.9″ (22mm) |
|
Height |
4.1″ (105mm) |
|
Main Module Dimensions |
|
|
Width |
3.5″ (90mm) |
|
Depth |
2.3″ (58mm) |
|
Height |
5.6″ (142mm) |
|
Display Panel Cable |
|
|
Length |
9.8 ft |
|
AWG |
22 |
|
Temp Sensor Cable |
|
|
Length |
16.4 ft |
|
AWG |
24 |
|
Door Sensor Cable |
|
|
Length |
16.4 ft |
|
AWG |
24 |
Shipping:
About This Delivery: This sauna heater system requires a scheduled appointment. It arrives on a wooden pallet and is encased in three-ply cardboard for solid protection. The driver is responsible for “delivery only” and will provide limited assistance at the site. Prior to shipping, we may contact customers to share shipment details and needs and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses. Our goal is to ensure your project’s success.
Freight Quote Requests: Email admin@backyardamerica.com. Please include sauna heater model number and full shipping address.
Accessory Freight: Sauna accessories can be shipped with this sauna heater to save on shipping costs. Consider adding accessories to sauna heater orders to bolster margins.
