HUUM HIVE 15STUX Pkg
HIVE Series 15.0kW Sauna Heater Package
SKU: 534-BDL-HIVE15STULB-SDX | Model: HIVE 15STUX PKG
The HUUM HIVE 15STUX sauna heater package comes complete with the traditionally designed HIVE 15kW sauna heater, UKU control (Wi-Fi optional), UKU extension box, and sauna stones. This package provides unmatched efficiency and performance, and has been engineered for larger sauna rooms from 530 to 813 cubic feet (CF).
Description:
The HUUM HIVE 15STUX sauna heater package features all the necessities that will give your sauna space a touch of modern elegance. This all-inclusive package includes the HIVE 15kW sauna heater, UKU control with optional Wi-Fi, UKU extension box, and 528 lbs of sauna stones.
Precision-engineered and crafted in Estonia for a true European sauna experience.
Features:

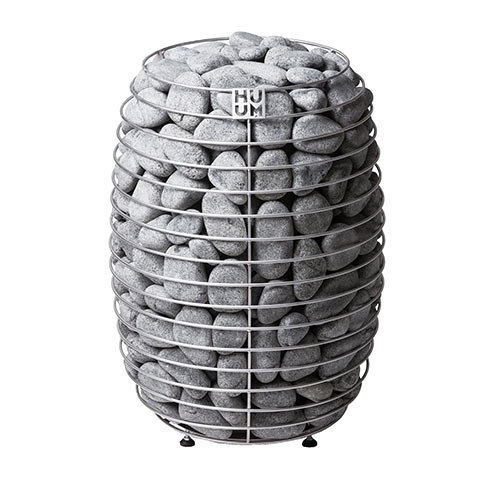

HIVE 15.0kW Sauna Heater
- Elegant design
- Suitable for commercial use
- 240V/1PH operation
- Works with UKU controls
- Works with UKU extension box
- Large 528 pound stone capacity
- Direct contact between stones and heating elements
- More exposed stones create a longer and milder heat
- Stainless steel construction
- Stainless steel, industrial quality heating elements
- Floor model with adjustable legs

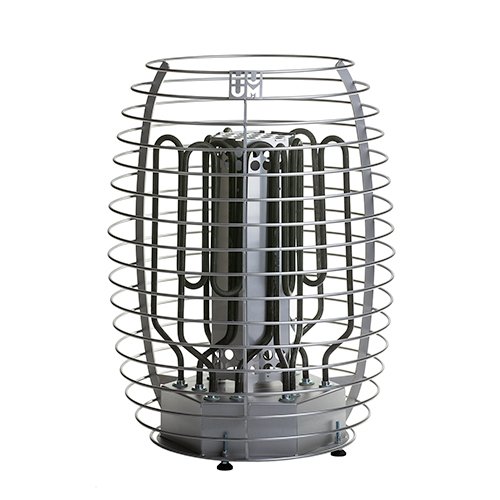

- Air tunnel shortens heat-up time and increases life of heating elements
- SGS listed
- Designed, engineered, and made in Estonia
- Dimensions: 22″Diameter (560mm) x 29.5″H (750mm)
- Limited 3-year residential warranty and limited 1-year commercial warranty (excluding elements)
UKU Control
- Sleek black control display panel

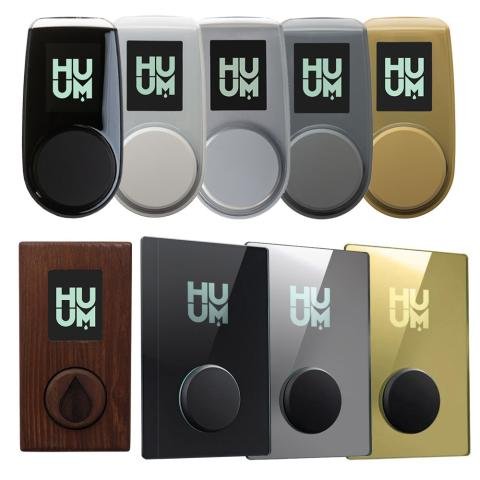

- Multiple color options available (additional charges apply)
- Settable on/off, time, temperature, and delay
- Settable temperature range of 104-230°F
- Delayed start up to 48hrs in advance

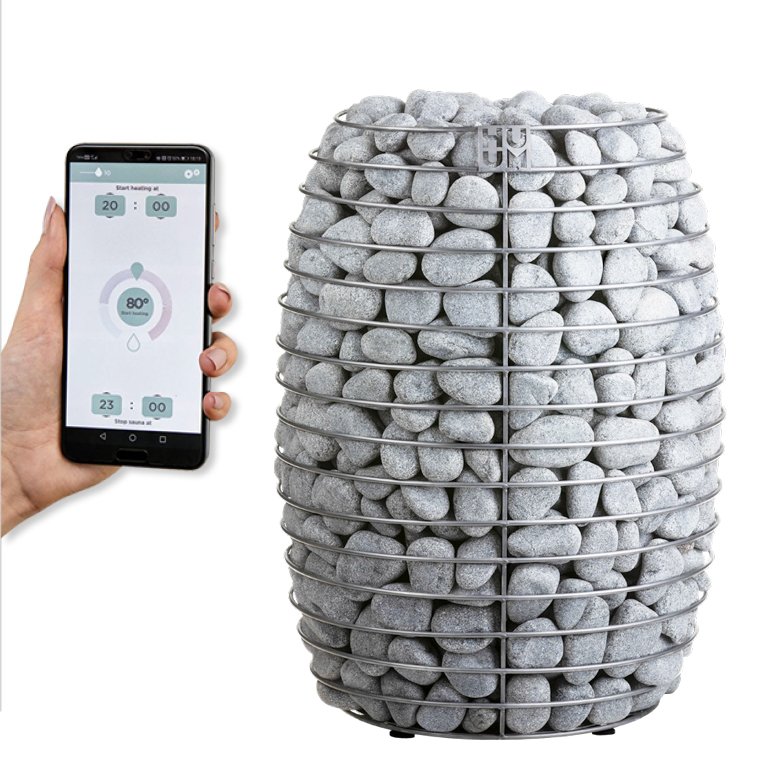

- Optional built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
- 8 language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
- Inside/outside sauna room installation
- Optional smart heating setting
- Available decorative control display panels
- Displays set temperature and room temperature
- Temperature sensor
- Door sensor to keep the heat inside the room
- Remotely located main control module
- Connects to lights and ventilation
- Overheat protection
- Child safety lock
- Control Console Dimensions: 2.2″W (55mm) x 0.9″D (22mm) x 4.1″H (105mm)
- Main Control Module Dimensions: 3.5″W (90mm) x 2.3″D (58mm) x 5.6″H (142mm)
- Limited 3-year residential warranty and limited 1-year commercial warranty

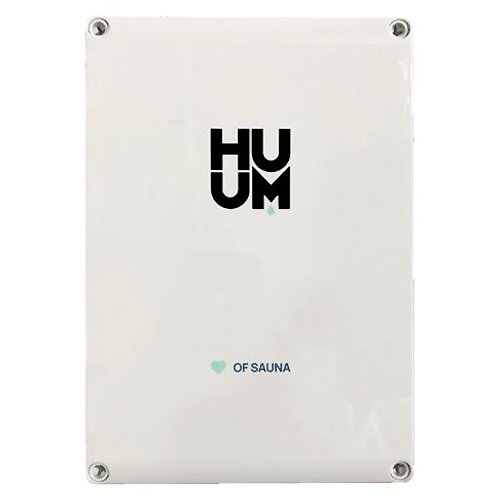

UKU Extension Box
- For use with UKU controls
- For heaters over 12kW
- Dimensions: 7″W (178mm) x 4″D (101mm) x 10″H (254mm)
- Limited 3-year residential warranty and limited 1-year commercial warranty

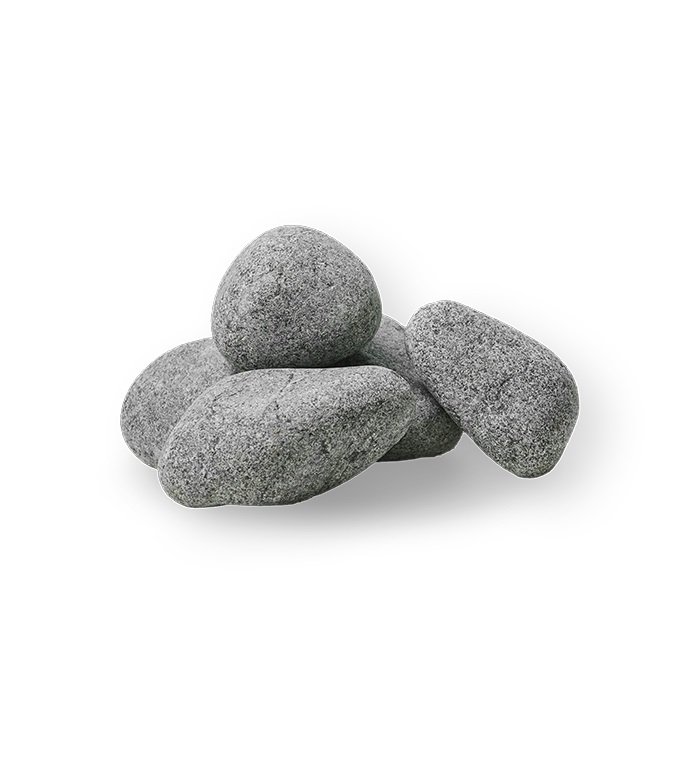

Stones 24
- Olivine diabase sauna stones
- Rounded shape to complement heater design
- Durable with high-heat capacity
- Stones range from 2″ to 4″ (5-10 cm)
Includes:
HIVE 15.0kW Sauna Heater
- 15.0kW Sauna Heater
- Adjustable Legs
- Pre-Installed HIVE Air Tunnel
- Installation and Operation Manual
- 3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty (Excluding Elements)
UKU Control
- Black Control Console
- Main Control Module
- Temperature Sensor
- Door Sensor
- Control Display Panel Cable
- Temperature Sensor Cable
- Door Sensor Cable
- Installation and Operation Manual
- 3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty
UKU Extension Box
- Extension Box
- Installation and Operation Manual
- 3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty
Stones 24
- 528 lbs of 2″ – 4″ (5-10 cm) Round Sauna Stones
Specifications:
|
Model |
HIVE 15STUX PKG |
|
HIVE 15 |
|
|
Kilowatt Rating |
15.0kW |
|
Minimum Cubic Feet |
530 |
|
Maximum Cubic Feet |
813 |
|
Heater Weight |
51.3 lbs |
|
Shipping Weight with Sauna Stones |
579.3 lbs |
|
240V, Single-Phase Amperage |
62.5 |
|
Circuit Breaker |
See Installation and Operation Manual |
|
Wire Size AWG |
6 + 6 |
|
Diameter |
22″ (560mm) |
|
Height |
29.5″ (750mm) |
|
UKU Control |
|
|
Minimum Temperature Setting |
104°F |
|
Maximum Temperature Setting |
230°F |
|
Shipping Weight |
20 lbs |
|
Console Dimensions |
|
|
Width |
2.2″ (55mm) |
|
Depth |
0.9″ (22mm) |
|
Height |
4.1″ (105mm) |
|
Main Module Dimensions |
|
|
Width |
3.5″ (90mm) |
|
Depth |
2.3″ (58mm) |
|
Height |
5.6″ (142mm) |
|
Display Panel Cable |
|
|
Length |
9.8 ft |
|
AWG |
22 |
|
Temp Sensor Cable |
|
|
Length |
16.4 ft |
|
AWG |
24 |
|
Door Sensor Cable |
|
|
Length |
16.4 ft |
|
AWG |
24 |
|
UKU Ext Box |
|
|
Voltage |
240 |
|
Circuit Breaker Amperage |
2 x 63 |
|
Weight |
3.25 lbs |
|
Width |
7″ (178mm) |
|
Depth |
4″ (101mm) |
|
Height |
10″ (254mm) |
Shipping:
About This Delivery: This sauna heater system requires a scheduled appointment. It arrives on a wooden pallet and is encased in three-ply cardboard for solid protection. The driver is responsible for “delivery only” and will provide limited assistance at the site. Prior to shipping, we may contact customers to share shipment details and needs and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses. Our goal is to ensure your project’s success.
Freight Quote Requests: Email admin@backyardamerica.com. Please include sauna heater model number and full shipping address.
Accessory Freight: Sauna accessories can be shipped with this sauna heater to save on shipping costs. Consider adding accessories to sauna heater orders to bolster margins.
