HUUM CORE Aspen Pkg
CORE Series Sauna Heater Package, Aspe
SKU: 129594 | Model: CORE ASPEN PKG

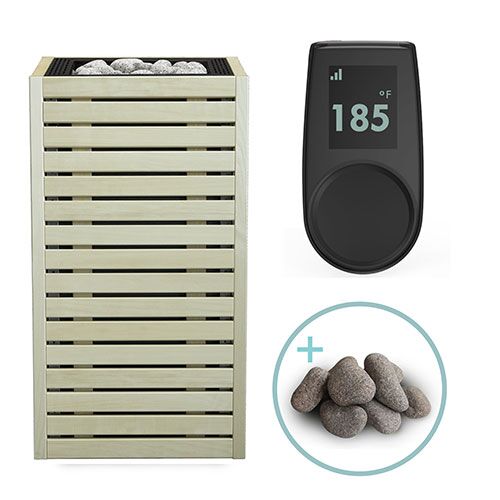

The HUUM CORE Sauna Heater Package comes complete with the CORE Aspen Sauna Heater, UKU Control, and Sauna Stones. Designed for flexibility and style, this elegant and powerful unit features premium Aspen wood exterior panels for an upscale, modern appearance and is engineered for sauna rooms up to 566 cubic feet (CF).
- 6.5kW – For sauna rooms from 177 to 318 cubic feet
- 9kW – For sauna rooms from 283 to 460 cubic feet
- 10.5kW – For sauna rooms from 354 to 566 cubic feet
Description:
The HUUM CORE Sauna Heater Package comes complete with the CORE Aspen Sauna Heater, UKU Control, and Sauna Stones. This heater package is built to match the aesthetic of your sauna room while providing exceptional performance and luxurious steam with an upscale, modern look.
Crafted in Estonia where sauna is a way of life, the HUUM CORE Aspen is constructed from stainless steel with assorted inlay finishes and Aspen pre-fitted side panels to match your saunas interior. Available in a variety of power ratings to suit a wide array of sauna sizes, the CORE thrives in tight spaces where users can benefit from the heater’s small footprint and minimal safety distances. This clever design allows endless choices for placement, including the option to embed the heater within the sauna bench.
The CORE will swiftly heat the sauna room while you confidently ladle water upon the sauna stone surface to generate an abundance of steam. Pair the unit with a UKU Control for total command of your powerful sauna heater system.
Backed by a 3-year warranty for private use, the HUUM CORE Aspen Sauna Heater is an embodiment of pure Nordic design, showcasing versatile functionality and durability while providing long-lasting relaxation.
Features:
CORE Aspen Sauna Heater
- 240V/1PH operation
- Customizable design with choice of different inlay finishes
- Wood panels add a finished look to the heater and help prevent burn injuries
- Built to match the sauna room aesthetic
- Can be completely embedded into a sauna bench
- Direct contact between stones and heating elements
- Stainless steel, industrial quality heating elements
- Designed, engineered, and made in Estonia
- Works with UKU Controls
- 66 pound stone capacity
- Dimensions: 12.2″W (31 cm) x 12.2″D (31 cm) x 32.7″H (83 cm)
- Limited 3-year residential warranty and limited 1-year commercial warranty (excluding elements)
UKU Control
- Sleek control display panel
- For heaters up to 18kW (over 11kW requires an extension box)
- Settable on/off, time, temperature, and delay
- Settable temperature range of 104-230°F
- Delayed start up to 48 hours in advance
- Optional built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
- 6-8 language options: English, German, Russian, Italian, Finnish, Estonian (additional Polish and French with mobile app)
- Unlimited number of users
- Notification when set temperature is reached
- Inside/outside sauna room installation
- Optional smart heating setting
- Displays set temperature and room temperature
- Temperature sensor
- Door sensor to keep the heat inside the room
- Remotely located main control module
- Connects to lights and ventilation
- Overheat protection
- Child safety lock
- Dimensions: 2.2″W (5.6 cm) x 0.9″D (2.3 cm) x 4.1″H (10.4 cm)
- Limited 3-year residential warranty and limited 1-year commercial warranty
Stones 24
- Olivine diabase sauna stones
- Rounded shape to complement heater design
- Durable with high-heat capacity
- Stones range from 2″ to 4″ (5-10 cm)
Includes:
CORE Aspen Sauna Heater
- Sauna Heater
- Adjustable Legs (4)
- Unfinished Metal Shields (4)
- Cover Strips (4)
- Wood Panels (4)
- Cover Strip Fastening Screws
- Wood Panel Fastening Screws
- Installation and Operation Manual
- 3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty (Excluding Elements)
UKU Control
- Control Panel
- Main Module
- Temperature Sensor
- Door Sensor
- Control Panel Cable
- Temperature Sensor Cable
- Door Sensor Cable
- Installation and Operation Manual
- 3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty
Stones 24
- 66 lbs of 2″ to 4″ (5-10 cm) Round Sauna Stones
Specification:
|
Model |
CORE ASPEN |
|
Room Size |
177-566 cu. ft. |
|
Wattage Rating |
6500-10500 |
|
Voltage |
240 |
|
Phase |
1 |
|
Amperage |
25-43.75 |
|
Circuit Breaker |
See Installation and Operation Manual |
|
Wire Size AWG |
10 or 8 |
|
Safety Listing |
CE (CE Certificate) |
|
Minimum Ceiling Height |
80″ (203 cm) |
|
Safety Distance (Front to Back) |
See Installation and Operation Manual |
|
Safety Distance (Left to Right) |
See Installation and Operation Manual |
|
Stone Capacity |
66 lbs (30 kg) |
|
Stone Size |
2″ to 4″ (5-10 cm) |
|
Width |
12.2″ (31 cm) |
|
Depth |
12.2″ (31 cm) |
|
Height |
32.7″ (83 cm) |
|
Weight |
41.9 lbs (19 kg) |
|
Shipping Weight with Sauna Stones |
107.9 lbs (48.9 kg) |
|
Model |
CORE ASPEN PANEL |
|
Construction Material |
Aspen Wood |
|
Width |
15.1″ (38.4 cm) |
|
Depth |
1.1″ (2.7 cm) |
|
Height |
31.5″ (80 cm) |
|
Model |
UKU |
|
Minimum Temperature |
104°F |
|
Maximum Temperature |
230°F |
|
Width |
2.2″ (5.6 cm) |
|
Depth |
0.9″ (2.3 cm) |
|
Height |
4.1″ (10.4 cm) |
|
Model |
CORE ASPEN 6 |
|
Room Size |
177-318 cu. ft. |
|
Wattage Rating |
6500 |
|
Amperage |
25 |
|
Wire Size AWG |
10 |
|
Model |
CORE ASPEN 9 |
|
Room Size |
283-460 cu. ft. |
|
Wattage Rating |
9000 |
|
Amperage |
37.5 |
|
Wire Size AWG |
8 |
|
Model |
CORE ASPEN 11 |
|
Room Size |
354-566 cu. ft. |
|
Wattage Rating |
10500 |
|
Amperage |
43.75 |
|
Wire Size AWG |
8 |
Shipping:
About This Delivery: This sauna heater system requires a scheduled appointment. It arrives on a wooden pallet and is encased in three-ply cardboard for solid protection. The driver is responsible for “delivery only” and will provide limited assistance at the site. Prior to shipping, we may contact customers to share shipment details and needs and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses. Our goal is to ensure your project’s success.
Freight Quote Requests: Email admin@backyardamerica.com. Please include sauna heater model number and full shipping address.
Accessory Freight: Sauna accessories can be shipped with this sauna heater to save on shipping costs. Consider adding accessories to sauna heater orders to bolster margins.
