HUUM CLIFF 9STU Pkg
CLIFF Series 9kW Sauna Heater Package
SKU: 534-BDL-CLIFF90STULB | Model: CLIFF 9STU

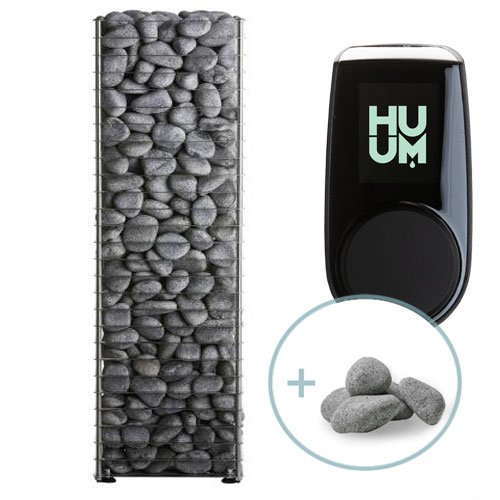

This HUUM Cliff sauna heater package comes complete with the traditionally designed CLIFF 9kW sauna heater, UKU control (WiFi optional), and sauna stones – everything you need to build your dream sauna experience. The package has been combined for use in sauna rooms from 283 to 460 cubic feet (CF).
Description:
This HUUM Cliff sauna heater package comes complete with the traditionally designed CLIFF 9kW sauna heater, UKU control (WiFi optional), and sauna stones – everything you need to build your dream sauna experience.
Features:

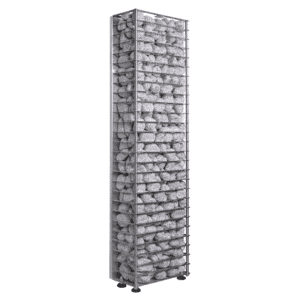

CLIFF 9kW Sauna Heater
- Slim design
- Suitable for use in saunas with limited space
- Small safety distances
- Heats up to 25% faster due to internal air duct
- Works with UKU controls (sold separately)
- 165 lb. stone capacity (required 5 boxes sold separately)
- Removable rib(s) for more accurate stacking of stones
- Direct contact between stones and heating elements
- More exposed stones creates a longer and milder heat
- Stainless steel construction
- Stainless steel, industrial quality heating elements
- Floor model
- Designed, engineered, and made in Estonia
- Dimensions: 10.6″ W (270mm) x 10.6″ D (270mm) x 38.4″ H (975mm)
- Limited 3-year residential warranty and limited 1-year commercial warranty (excluding elements)

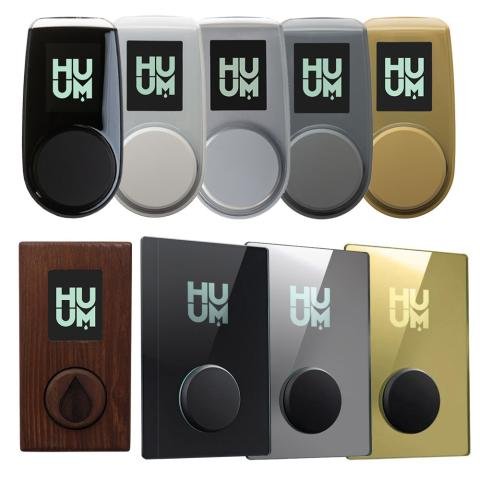

UKU
- Sleek Black control display panel
- Multiple Color Options available (additional charges apply)
- Settable on/off, time, temperature, and delay
- Settable temperature range of 104-230F
- Delayed start up to 48hrs in advance
- Optional Built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
- 8 Language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
- Inside/outside sauna room installation
- Optional smart heating setting
- Available decorative control display panels
- Displays set temperature and room temperature
- Temperature sensor
- Door sensor to keep the heat inside the room
- Remotely located main control module
- Connects to lights and ventilation
- Overheat protection
- Child safety lock
- Control Console Dimensions: 2.2″W (55mm) x 0.9″D (22mm) x 4.1″H (105mm)
- Main Control Module Dimensions: 3.5″W (90mm) x 2.3″D (58mm) x 5.6″H (142mm)
- Limited 3-year residential warranty and limited 1-year commercial warranty

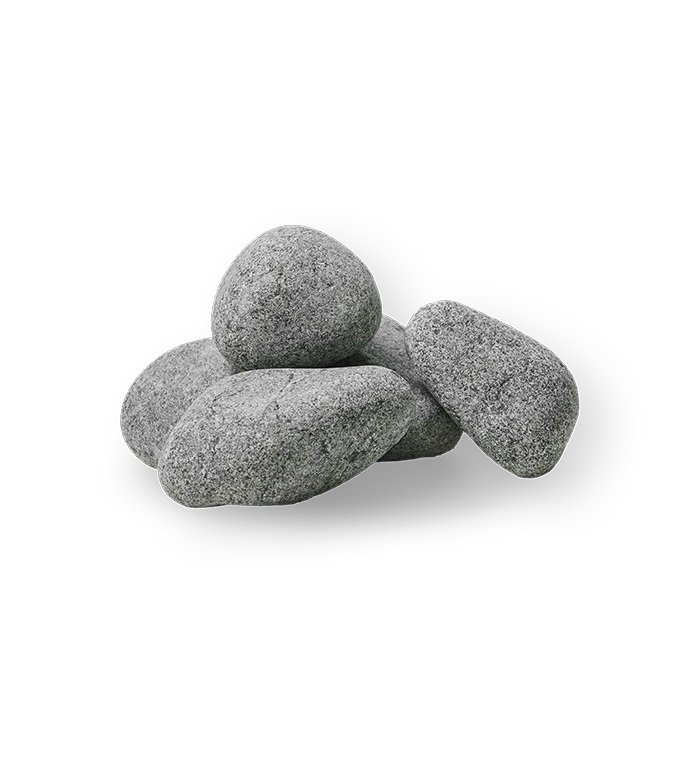

Stones 12
- Olivine diabase sauna stones
- Rounded shape to complement heater design
- Durable with high-heat capacity
- Stones range from 1″ to 2″ (3-5 cm)
Includes:
CLIFF 9kW Sauna Heater
- 9kW Sauna Heater
- 2 Prop Blocks (For Removal of Sauna Rib Slats)
- Installation and Operation Manual
- 3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty (Excluding Elements)
UKU
- Black Control Console
- Main Control Module
- Temperature Sensor
- Door Sensor
- Control Display Panel Cable
- Temperature Sensor Cable
- Door Sensor Cable
- Installation and Operation Manual
- 3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty
Stones 12
- 165 lbs of 1″ to 2″ (3-5 cm) Round Sauna Stones
Specifications:
|
Model |
CLIFF 9STU PKG |
|
CLIFF 9 |
|
|
Kilowatt Rating |
9kW |
|
Minimum Cubic Feet |
283 |
|
Maximum Cubic Feet |
460 |
|
Heater Weight |
35.2 lbs (16 kg) |
|
Shipping Weight with Sauna Stones |
200 lbs (91 kg) |
|
240V, Single Phase Amperage |
37.5 Amps |
|
Width |
10.6″W (270mm) |
|
Depth |
10.6″D (270mm) |
|
Height |
38.4″H (975mm) |
|
UKU |
|
|
Minimum Temperature Setting |
104°F |
|
Maximum Temperature Setting |
230°F |
|
Shipping Weight |
20 lbs |
|
Console Dimensions |
|
|
Width |
2.2″ (55mm) |
|
Depth |
0.9″ (22mm) |
|
Height |
4.1″ (105mm) |
|
Main Module Dimensions |
|
|
Width |
3.5″ (90mm) |
|
Depth |
2.3″ (58mm) |
|
Height |
5.6″ (142mm) |
|
Display Panel Cable |
|
|
Length |
9.8 ft |
|
AWG |
22 |
|
Temp Sensor Cable |
|
|
Length |
16.4 ft |
|
AWG |
24 |
|
Door Sensor Cable |
|
|
Length |
16.4 ft |
|
AWG |
24 |
Shipping:
About This Delivery: This sauna heater system requires a scheduled appointment. It arrives on a wooden pallet and is encased in three-ply cardboard for solid protection. The driver is responsible for “delivery only” and will provide limited assistance at the site. Prior to shipping, we may contact customers to share shipment details and needs and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses. Our goal is to ensure your project’s success.
Freight Quote Requests: Email admin@backyardamerica.com. Please include sauna heater model number and full shipping address.
Accessory Freight: Sauna accessories can be shipped with this sauna heater to save on shipping costs. Consider adding accessories to sauna heater orders to bolster margins.
