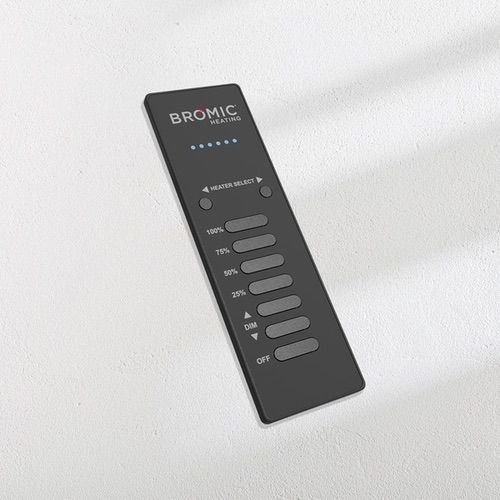

Bromic Wireless Master Remote

The Bromic Wireless Master Remote controls heater output, lighting, and multiple zones through compatible Bromic controllers.

SKU: BH3623002-1

$233.00

The Bromic Wireless Master Remote (Eclipse Master 42 wireless remote) puts heater output and lighting controls in one handheld remote. It works with compatible Bromic Eclipse dimmer controllers, sold separately.

Use the SEL button to choose between zones and manage multiple groups of heaters with one remote. With a range of about 100 feet, it is a practical choice for larger patios and venues with several heaters.

Features

  • Heater Output Control: Choose 100%, 66%, or 33% heater output, or turn the heaters off.
  • Lighting Control: Set lights to 100% or 50%, dim them, or turn them off.
  • Multiple Zone Selection: The SEL button lets you select between zones to manage multiple heater zones with one remote.
  • Wireless Signal: The remote uses a rolling-code signal at 916 MHz in the US and complies with FCC Part 15.
  • Remote Pairing: Pair a new remote using an already programmed remote without accessing the receiver.
  • Battery Power: The handheld remote runs on a CR2430 battery.
  • Controller Compatibility: The remote works only with compatible Bromic controllers, which are sold separately.

Specifications

PART # BH3623002-1
FREQUENCY 916 MHz (US)
RANGE About 100 ft
BATTERY CR2430
HEAT CONTROL 100 / 66 / 33% / Off
LIGHT CONTROL 100 / 50% / Off, dimming
COMPLIANCE FCC Part 15
COMPATIBILITY Bromic Eclipse dimmer controllers (sold separately)

Downloads

FAQs

What is a zone?

A zone is a group of heaters you control together. Use the SEL button on the Master Remote to switch between zones, so each group can be set independently.

How do I pair a new Master Remote?

Your electrician can pair it during installation, or you can pair it yourself using a remote that is already programmed to the controller, without opening the receiver. See the manual below for the steps.

Free PDF downloads. Each opens in a new tab so you can view, print or save it.

Looking for something else? See all manuals & resources or contact us.
